Berkeley Product Development [Bike Lock]

Final Presentation

Final Report

Smart bicycle locks, equipped with Bluetooth or Wi-Fi capabilities for locking and unlocking, are already available in today’s market. However, these products tend to suffer from a handful of glaring flaws, which we aimed to address with our design: the Secure and Sustainable Smart Lock.

Identifying Market Gaps

Our research into existing products revealed two significant issues:

  1. Unreliability: Bluetooth connections in current locks are prone to failure, frustrating users and limiting functionality.

  2. Security vulnerabilities: Many competing locks can be easily cut, making them an inadequate solution for theft prevention.

Beyond these technical flaws, we also discovered a key gap in the market—a complete absence of environmentally friendly bike lock options. This presented an opportunity to not only enhance security and usability but also incorporate sustainability into our design, addressing growing consumer interest in eco-conscious products.

Meeting User Needs

To ensure our design aligned with user priorities, we interviewed 30 potential consumers to determine what features they valued most. The feedback highlighted the following features, ranked in order of increasing importance:

  1. An integrated alarm system to deter theft.

  2. A notification system to alert users in real time.

  3. A stiff yet lightweight structure for ease of use and portability.

  4. Bluetooth functionality for locking and unlocking the device.

  5. A tracking system to locate a stolen or misplaced bike.

Design Process

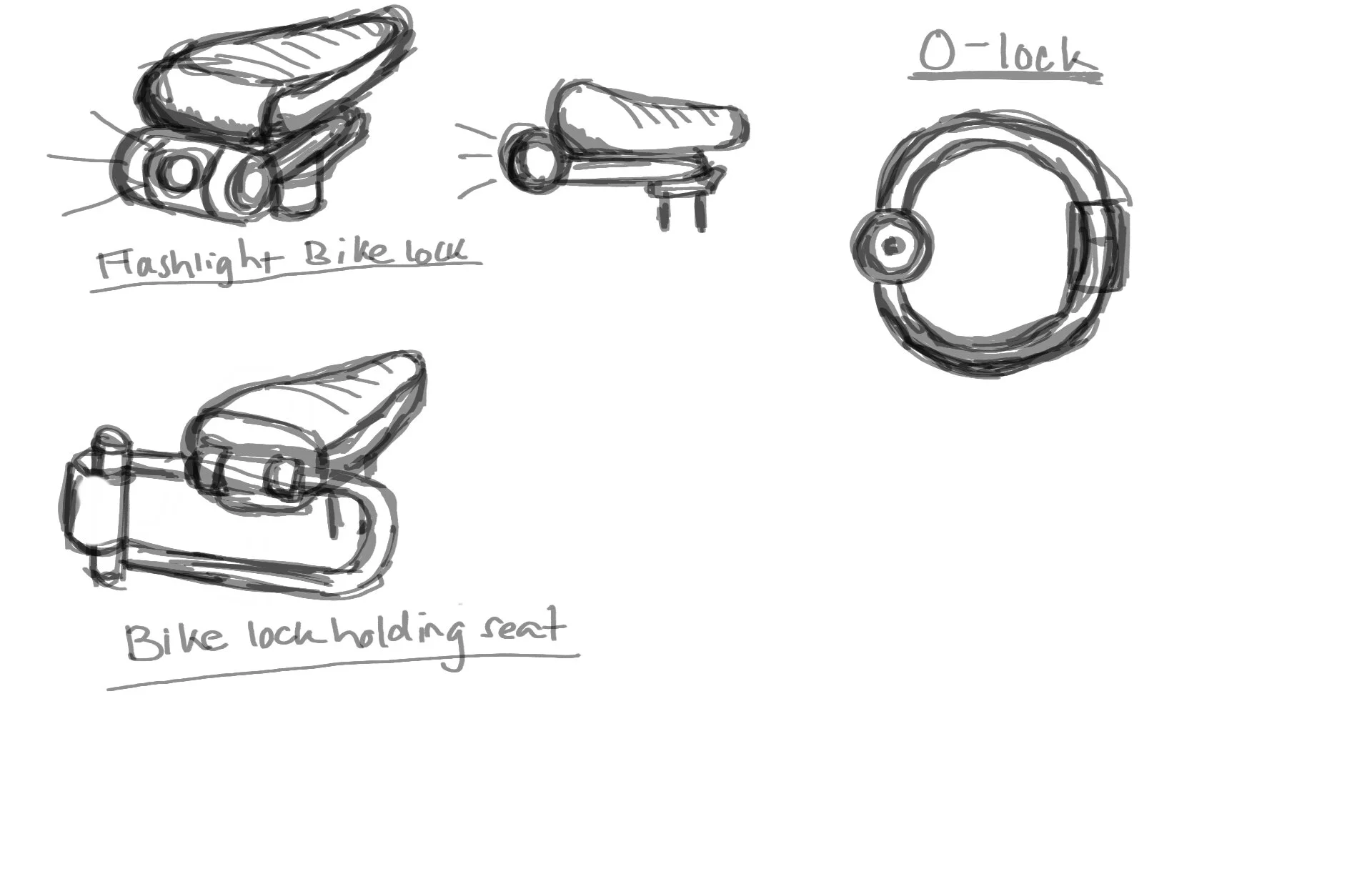

We began by brainstorming and creating 60 distinct design concepts, each incorporating a variety of features. These designs were then consolidated and refined into a single prototype that combined the most critical elements.

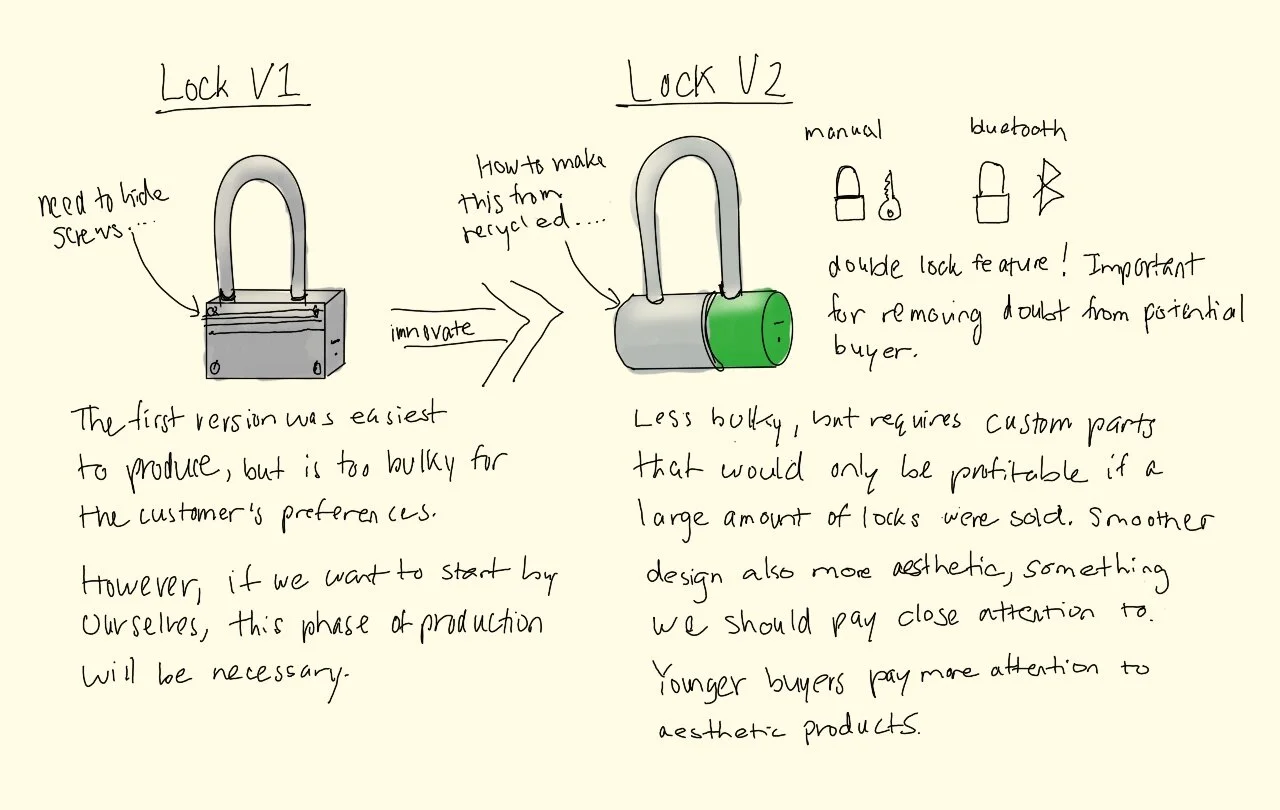

Our initial prototype underwent rigorous feedback sessions with peers, which allowed us to identify areas for improvement and iterate on the design. Through this iterative process, we ultimately developed a Smart Lock that met the following criteria:

  • Environmentally Friendly: Incorporating sustainable materials and processes in the lock’s production.

  • Integrated Alarm System: Providing an audible deterrent against theft attempts.

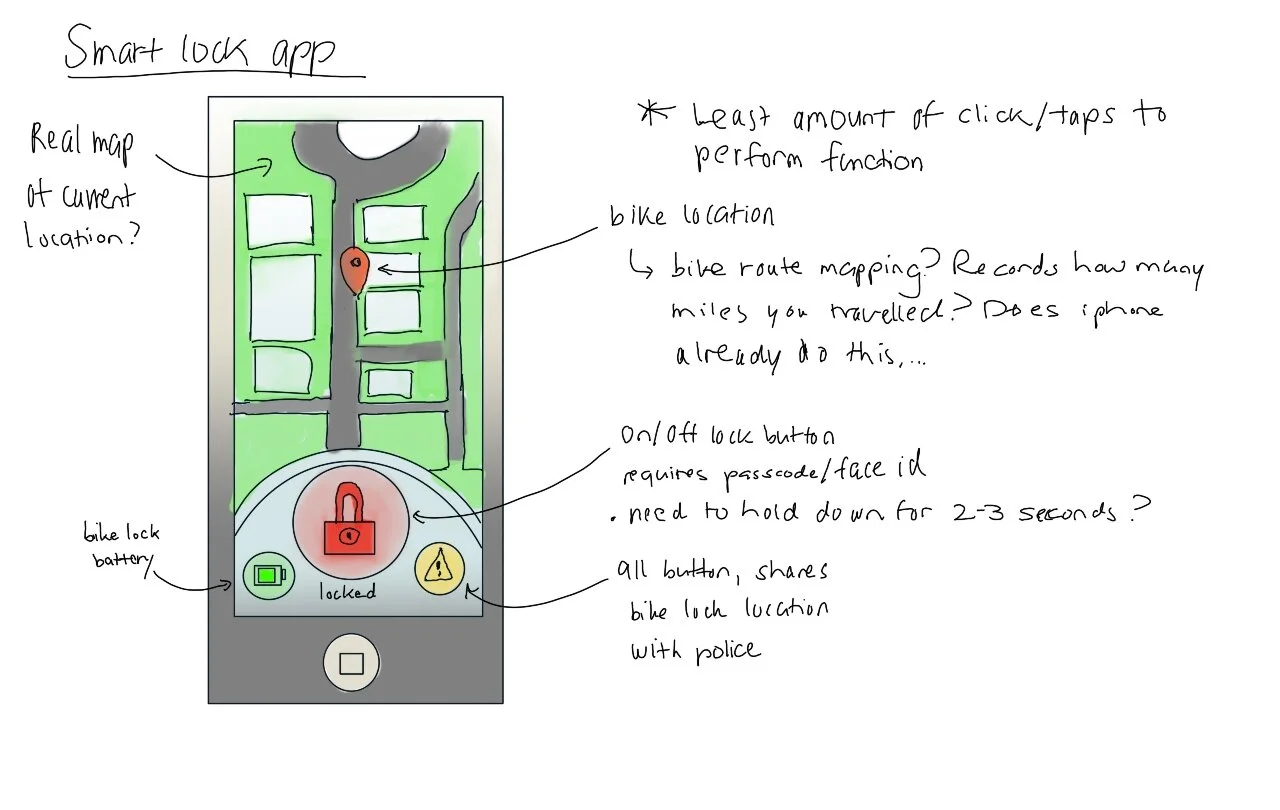

  • Bluetooth Capabilities: Enabling users to lock and unlock their bikes seamlessly via their smartphones.

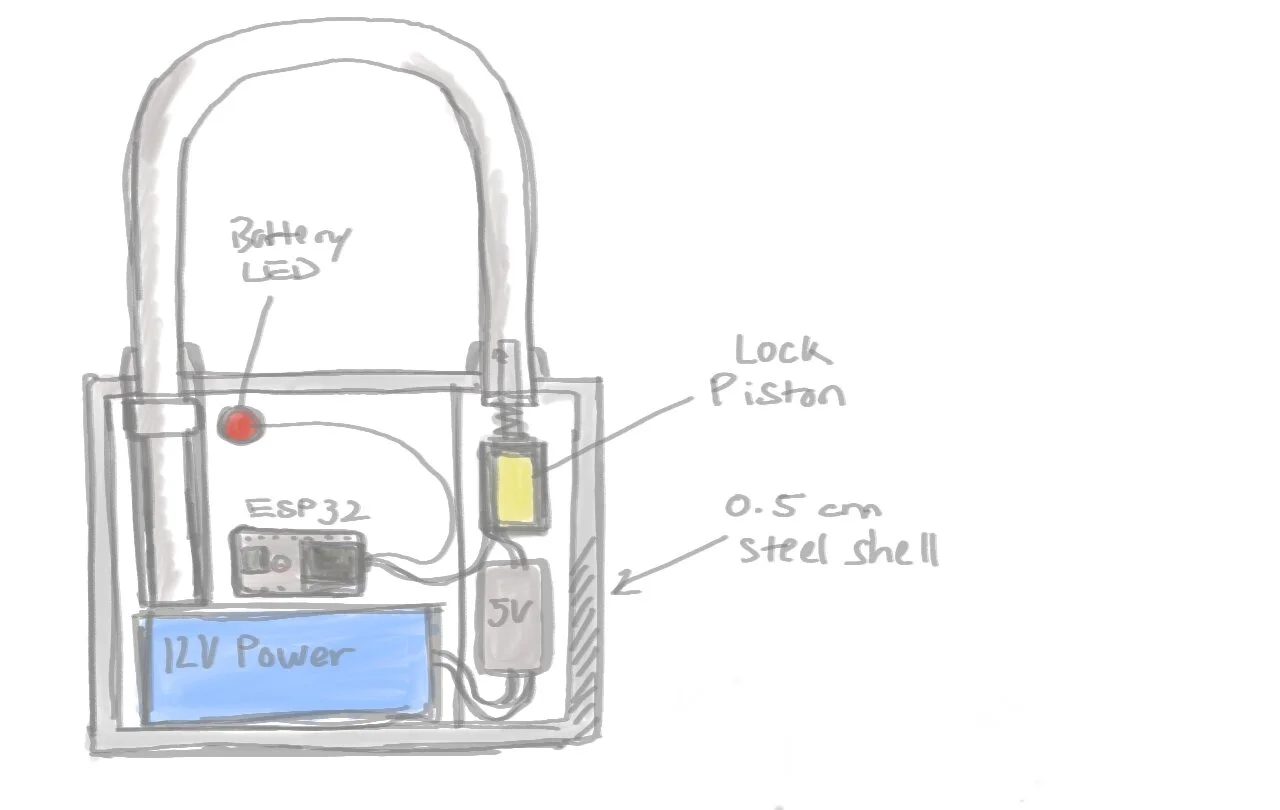

  • Mechanical Lock: Offering a robust, physical layer of security to complement digital features.

  • Notification System: Alerting users to potential theft attempts or other lock activity in real time.

Final Product

The Secure and Sustainable Smart Lock stands out as a comprehensive solution that addresses the shortcomings of existing bike locks while introducing much-needed innovation to the market. With enhanced reliability, superior security, and eco-friendly design principles, it offers cyclists a smarter and more sustainable way to protect their bikes.
